Genetic characterization of the pluripotent proteome

# options
options(stringsAsFactors = F)
knitr::opts_chunk$set(echo = TRUE, warning = FALSE, message = FALSE)
knitr::opts_knit$set(progress = FALSE)

Figure 4A: Genetic map of the pluripotent proteome

# prepping data
peaks.esc_prot_annotated <- peaks.esc_prot %>%
  rename( protein_id = phenotype) %>%
  left_join(all.prots2) %>%
  mutate( same_chrom =  (peak_chr == gene_chr),
          diff = abs(midpoint - interp_bp_peak)) %>%
  mutate( local = ifelse( same_chrom &
                            diff < 10e06, TRUE, FALSE
    )) %>%
  # removing the pQTL for the proteins that lack annotations.
  filter(!is.na(mgi_symbol))
peaks.esc_prot_annotated$cumsum_bp_peak <- peaks.esc_prot_annotated$interp_bp_peak + chrom_lens_offset[peaks.esc_prot_annotated$peak_chr]

Figure4A_data <- peaks.esc_prot_annotated %>%
  filter( lod > 7.5) %>%
  mutate( local = ifelse( local ==T, "Local", "Distant")) %>%
  select(
    `Protein ID`= protein_id,
    `Offsetted QTL peak location (bp)` = cumsum_bp_peak,
    `Offsetted gene midpoint (bp)` = cumsum_bp_gene,
    `QTL peak (chr)` = peak_chr,
    `QTL peak (bp)` = interp_bp_peak,
    `MGI symbol` = mgi_symbol,
    `Gene start` = gene_start,
    `Gene end` = gene_end,
    `Gene chr` = gene_chr
  )

# graphical prep for chromosome locations
chroms <- c(as.character(1:19), "X")
chrom_lens <- c( 195431559, 182107670, 160017104, 156496071, 151833620, 149721874, 145434693, 129399468, 124582650, 130685419, 122078650, 120120622 ,120387272, 124867725, 104015452, 98180002, 94984432, 90672596, 61417310 , 171028300)
names(chrom_lens) <- chroms
chrom_lens_offset <- cumsum(chrom_lens) - chrom_lens
chrom_lens_midpt <- chrom_lens_offset + chrom_lens / 2

# prepping chromosome segments for coloring
chrom_segments <- tibble( start = 0,
                          end = chrom_lens,
                          chr = chroms,
                          type = as.character(rep(c(0,1),10)))
chrom_segments$start <- chrom_segments$start+ chrom_lens_offset[chrom_segments$chr]
chrom_segments$end <- chrom_segments$end+ chrom_lens_offset[chrom_segments$chr]

# qtl colors
qtl.colors <- c( rna = "#228833",
                 prot = "#4477AA",
                 atac = "#EE6677",
                 shared = "#AA3377")

ggplot()+
  geom_rect( data = chrom_segments, aes( xmin =start, xmax = end, ymin = 0, ymax = max(end), fill = type),
             inherit.aes = FALSE, alpha = 0.2, show.legend = FALSE)+
  scale_fill_manual(values = c("dark gray","white"))+
  geom_point(data = Figure4A_data,
            aes( x =  `Offsetted QTL peak location (bp)`,
                 y = `Offsetted gene midpoint (bp)`,
                 text = paste0("Gene: ",`MGI symbol`, "\n","chr", `Gene chr`,":",`Gene start`,"-",`Gene end`, "\n",
                               "QTL position: chr", `QTL peak (chr)`, ":",`QTL peak (bp)`)
                 ),
            size = 2,
            col =qtl.colors[["prot"]],
             inherit.aes = FALSE ,
            )+
  theme_pubclean(base_size = 16)+
  scale_x_discrete( name = "pQTL",
                    limits = chrom_lens_midpt,
                    labels = names(chrom_lens),
                    expand = expansion( mult = 0.02))+
  scale_y_discrete( name = "Protein coding gene",limits = chrom_lens_midpt, labels = names(chrom_lens), expand = expansion( mult = 0.02))+
  theme( axis.text = element_text(size = 10),
          panel.grid.major.x = element_blank(),
          panel.grid.major.y = element_blank()
         #legend.position = "none",
        #plot.margin = unit(c(1, 1, 1, 2), "cm")
        ) -> pqtl_plot

#ggplotly(pqtl_plot, tooltip = "text")

pqtl_plot

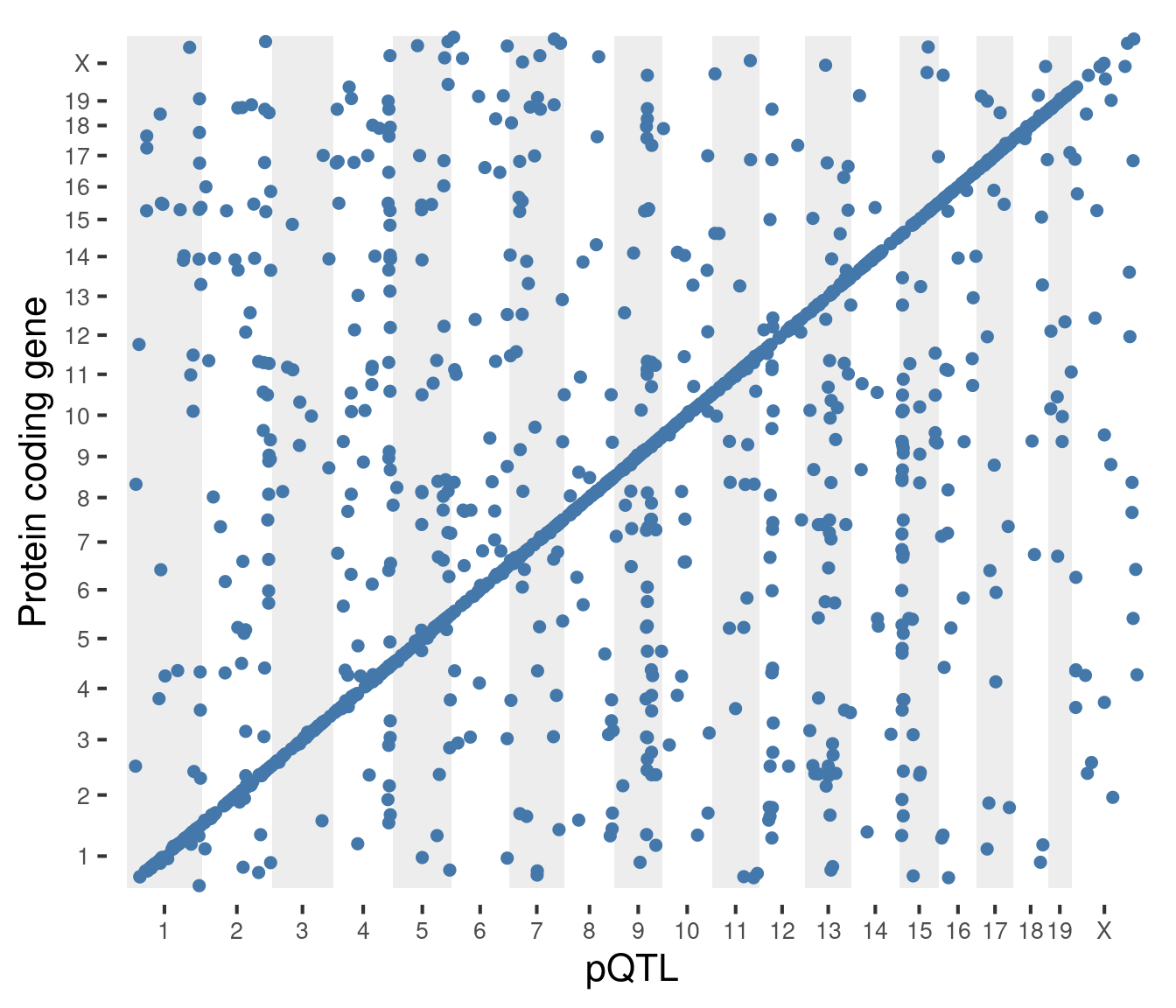

Figure 4A: Genetic mapping identifies 1,677 significant pQTL (LOD >7.5, permutation genome-wide p < 0.05, FDR = 0.06) where 1,056 are local (within 10Mb of the protein coding gene, seen on the diagonal) and 621 are distant (off the diagonal). pQTL are plotted across the genome where the x-axis shows the location of the pQTL and the y-axis shows the midpoint of the protein coding gene.

Data used in making the plot above can be downloaded below.

list(Figure4A_data) %>%
    downloadthis::download_this(
    output_name = "Figure4A data",
    output_extension = ".xlsx",
    button_label = "Download Figure 4A data as xlsx",
    button_type = "primary",
    has_icon = TRUE,
    icon = "fa fa-save"
  )

Download Figure 4A data as xlsx

Table S5: List of all significant pQTL in Diversity Outbred mESCs.

Significant pQTL (LOD > 7.5) are listed with gene annotations including Eensembl protein and gene ID, chromosome number, gene start and end coordinates (bp). In addition, QTL details include the peak chromosome and location (cM) and physical (bp) coordinates, as well as the QTL type (local or distant), QTL peaks within 10Mb of the gene midpoint are classified as local.

peaks.esc_prot_annotated %>%
  filter( lod > 7.5) %>%
  mutate( local = ifelse( local ==T, "Local", "Distant")) %>%
  left_join( all.prots %>%
               select(protein_id, mgi_symbol)
             ) %>%
  left_join(all.genes %>%
              select( mgi_symbol, ensembl_gene_id)
            ) %>%
  mutate( peak_chr = as.character(peak_chr),
          gene_chr = as.character(gene_chr)) %>%
  select(
    `Protein ID`= protein_id,
    `Gene ID` = ensembl_gene_id,
    `MGI symbol` = mgi_symbol,
    `QTL peak location (chr)` = peak_chr,
    `QTL peak location (bp)` = interp_bp_peak,
    `QTL peak location (cM)` = peak_cM,
    `QTL LOD score` = lod,
    `Protein coding gene location (chr)` = gene_chr,
    `Protein coding gene start (bp)` = gene_start,
    `Protein coding gene end (bp)` = gene_end,
    `QTL type` = local
  ) %>%
  mutate_if(is.numeric, round ,2) -> table_s5

Download Table_S5.xlsx

Example pQTL mapping code

For a single protein below is code for:

• rankZ normalization
• pQTL mapping
• Finding the pQTL peak
• Getting the allele effects at the pQTL peak

Please click on ‘code’ button below to make the code chunk visible.

# select protein example ENSMUSP00000109687, Tcf7l1
protein_example_id <- "ENSMUSP00000109687"

# 1 - rankZ normalize
rankZ <- function (x) {
  x <- rank(x, na.last = "keep", ties.method = "average")/(sum(!is.na(x)) + 1)
  qnorm(x)
}
protein_abundance <- expr.esc_prot[,"ENSMUSP00000109687", drop = FALSE]
protein_abundance_rankZ <- apply( protein_abundance, 2, rankZ)

# 2 - pQTL mapping
pQTL_scan <- qtl2::scan1(genoprobs = probs.esc_prot,
                         pheno = protein_abundance_rankZ,
                         kinship = kinship_loco.esc_prot,
                         addcovar = covar.esc_prot
                         )

# 3 - get pQTL peak
pQTL_peak <- find_peaks( scan1_output = pQTL_scan,
                         map = gmap,
                         threshold = 5)
pQTL_peak_significant <- pQTL_peak %>%
  filter(lod >7.5)

# 4 - get effects at the significant pQTL peak
# First interpolate the peak location from cM to bp
interp_bp <- function(df) {

  df <- arrange(df, peak_chr, peak_cM)
  peak_gpos <- select(df, peak_chr, peak_cM)
  chr <- peak_gpos$peak_chr
  f <- factor(chr, chroms)
  peak_gcoord_list <- split(peak_gpos$peak_cM, f)
  peak_pcoord_list <- qtl2::interp_map(peak_gcoord_list, gmap, pmap)
  df$interp_bp_peak <- unsplit(peak_pcoord_list, f)
  df
}
pQTL_peak_significant <- pQTL_peak_significant %>%
  mutate( peak_chr = chr, peak_cM = pos) %>%
  interp_bp(.)
# Then we need to get the bounding markers for the QTL peak
# i.e. markers on the 69k grid that are up- and downstream of the peak
query <- pQTL_peak_significant %>%
  dplyr::select(peak_chr, interp_bp_peak) %>%
  dplyr::rename(chrom=peak_chr, start=interp_bp_peak) %>%
  mutate(end=start) %>%
  GenomicRanges::GRanges()
subject <- select(map_dat2, chrom, pos_bp) %>%
  dplyr::rename(start=pos_bp) %>%
  mutate(end=start) %>%
  GenomicRanges::GRanges()   # length 69,005
pQTL_peak_significant$before <- map_dat2$marker[follow(query, subject)]
pQTL_peak_significant$after <- map_dat2$marker[precede(query, subject)]
# Now we can get the average allele effects between the two markers
subset_probs <- function(this_probs, this_chrom, this_markers) {
    att <- attributes(this_probs)
    att$names <- this_chrom
    att$is_x_chr <- setNames(FALSE, this_chrom)
    #assert_that(all(this_markers %in% dimnames(this_probs[[this_chrom]])[[3]]))
    newprobs <- list(this_probs[[this_chrom]][, , this_markers, drop=FALSE])
    names(newprobs) <- this_chrom
    attributes(newprobs) <- att
    newprobs
}
probs_2marker <- subset_probs(probs.esc_prot,
                              pQTL_peak_significant$peak_chr,
                              c(pQTL_peak_significant$before, pQTL_peak_significant$after)
                              )
pQTL_effects <- scan1blup(genoprobs = probs_2marker,
                          pheno = protein_abundance_rankZ,
                          kinship = kinship_loco.esc_prot[[pQTL_peak_significant$peak_chr]],
                          addcovar = covar.esc_prot
                          )
pQTL_effects <- colMeans(pQTL_effects[, LETTERS[1:8]]) %>%
  as_tibble()

# add effects to the peaks & add annotations
pQTL_peak_significant <- cbind(pQTL_peak_significant, t(as.matrix(pQTL_effects))) %>%
  rename( protein_id = lodcolumn) %>%
  left_join( all.prots) %>%
  select(-lodindex, -chr)


# Print the results
pQTL_peak_significant

Figure 4B: Correlation of allele effects

shared.qtl <- peaks.esc.overlap.wEffs %>%
  filter(match %in% c("shared","shared_eQTL_pQTL") &
         !(lod.esc_rna < 7.5 & lod.esc_prot < 7.5)) %>%
  select( ensembl_gene_id, protein_id, mgi_symbol, peak_chr, interp_bp_peak.esc_rna, interp_bp_peak.esc_prot, lod.esc_prot, lod.esc_rna) %>%
  distinct()

shared.qtl.effects <- peaks.esc.overlap.wEffs %>%
  select( ensembl_gene_id, protein_id, mgi_symbol, peak_chr, interp_bp_peak.esc_rna, interp_bp_peak.esc_prot, lod.esc_prot, lod.esc_rna,
          paste0(LETTERS[1:8],".esc_prot"), paste0(LETTERS[1:8],".esc_rna"),
          local.esc_rna, local.esc_prot
          ) %>%
  distinct() %>%
  right_join(., shared.qtl) %>%
  mutate(local = ifelse((local.esc_rna == TRUE | local.esc_prot == T), "local", "distant")) %>%
  filter(!is.na(A.esc_rna), !is.na(A.esc_prot)) %>%
  mutate(qtl_id = paste0("qtl_", 1:n()))

shared.esc_rna.effs <- shared.qtl.effects %>%
  select(c(paste0(LETTERS[1:8], ".esc_rna"), "qtl_id")) %>%
  column_to_rownames("qtl_id") %>%
  t()

shared.esc_prot.effs <- shared.qtl.effects %>%
  select(c(paste0(LETTERS[1:8], ".esc_prot"), "qtl_id")) %>%
  column_to_rownames("qtl_id") %>%
  t()

shared.qtl.eff.corrs <- cbind(shared.esc_rna.effs, shared.esc_prot.effs)
colnames(shared.qtl.eff.corrs) <- c(
  paste0(colnames(shared.esc_rna.effs), "_rna"),
  paste0(colnames(shared.esc_prot.effs), "_prot")
)
cor2 <- rcorr(shared.qtl.eff.corrs, type = c("pearson"))
shared.qtl.eff.corrs.df <- data.frame(
  cor = diag(cor2$r[
    endsWith(rownames(cor2$r), "_prot"),
    endsWith(colnames(cor2$r), "_rna")
  ]),
  row = rownames(cor2$r)[endsWith(rownames(cor2$r), "_prot")],
  column = colnames(cor2$r)[endsWith(colnames(cor2$r), "_rna")],
  p_val = diag(cor2$P[
    endsWith(rownames(cor2$P), "_prot"),
    endsWith(colnames(cor2$P), "_rna")
  ]),
  n = diag(cor2$n[
    endsWith(rownames(cor2$n), "_prot"),
    endsWith(colnames(cor2$n), "_rna")
  ])
) %>%
  mutate(qtl_id = gsub("_prot", "", row)) %>%
  mutate(p_adj = p.adjust(p_val, method = "BH")) %>%
  arrange(desc(abs(cor))) %>%
  left_join(., shared.qtl.effects)

Figure4B_data <- shared.qtl.eff.corrs.df %>%
  mutate(`Significance` =  ifelse(p_adj < 0.1, "FDR < 0.1", "ns")) %>%
  select(
    `Gene ID` = ensembl_gene_id,
    `Protein ID` = protein_id,
    `MGI symbol` = mgi_symbol,
    `Correlation between allele effects` = cor,
    Significance,
    `pQTL LOD` = lod.esc_prot,
    `eQTL LOD` = lod.esc_rna,
    `pQTL peak location (bp)` = interp_bp_peak.esc_prot,
    `eQTL peak location (bp)` = interp_bp_peak.esc_rna
  )

Figure4B_data %>%
  ggplot() +
  aes(y = `Correlation between allele effects`, col = Significance, fill = Significance) +
  geom_histogram(binwidth = 0.01) +
  theme_pubclean(base_size = 18) +
  #facet_wrap(~local, scales = "free") +
  scale_color_manual(values = c("dark red","dark gray")) +
  scale_fill_manual(values = c("dark red","dark gray")) +
  ylab("Haplotype effects correlation")+
  xlab("Count")+
  ylim(-1,1)+
  theme(legend.position = "right") -> allele_eff_cor_plot

allele_eff_cor_plot

Figure 4B: Majority of co-mapping eQTL and pQTL show high agreement in haplotype effects. Histogram of pairwise Pearson correlation coefficients between inferred allele effects from eQTL and pQTL scans for each gene with a co-mapping QTL. The bars are colored by the significance of the pairwise correlation.

Figure4B_data %>%
  mutate_if( is.numeric, round, 2) %>%
  create_dt()

Correlation values used in plotting in Figure 4B

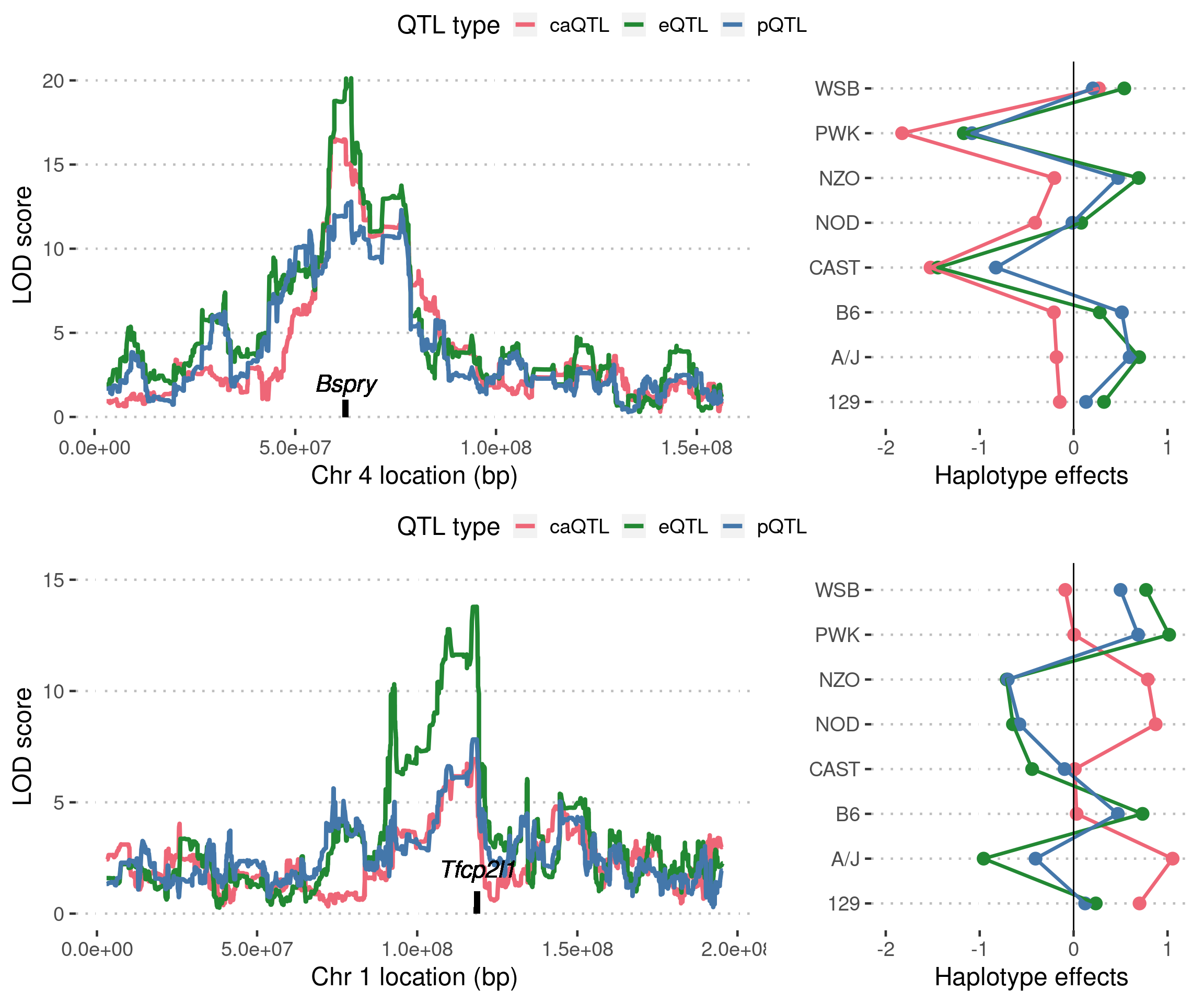

Figure 4C: Overlapping QTL examples

# BSPRY plot
bspry_qtl <- peaks.esc.overlap.wEffs %>%
  filter( lod.esc_prot >7.5,
          lod.esc_rna > 7.5,
          lod.esc_atac >7.5,
          mgi_symbol =="Bspry")

# get allele effects
peaks.esc.overlap.wEffs %>%
  filter( peak_id == bspry_qtl$peak_id ,
          peak_chr == bspry_qtl$peak_chr) %>%
  select( mgi_symbol,
          paste0(LETTERS[1:8], ".esc_atac"),
          paste0(LETTERS[1:8], ".esc_rna"),
          paste0(LETTERS[1:8], ".esc_prot")
  ) -> bspry_effects


# get QTL scans
bspry_caqtl <- scan1(genoprobs = probs.esc_atac,
                 pheno = counts.normZ[,bspry_qtl$peak_id],
                 kinship = kinship_loco.esc_atac,
                 addcovar = covar.esc_atac)

bspry_eqtl <- scan1(genoprobs = probs.esc_rna,
                 pheno = exprZ.esc_rna[,bspry_qtl$ensembl_gene_id],
                 kinship = kinship_loco.esc_rna,
                 addcovar = covar.esc_rna)

bspry_pqtl <- scan1(genoprobs = probs.esc_prot,
                 pheno = exprZ.esc_prot[,bspry_qtl$protein_id],
                 kinship = kinship_loco.esc_prot,
                 addcovar = covar.esc_prot)

bspry_caqtl %>%
  as.data.frame( ) %>%
  rename( caqtl = pheno1) %>%
  mutate( marker = dimnames(bspry_caqtl)[[1]]) %>%
  left_join(map_dat2) %>%
  cbind(
    bspry_eqtl %>% as.data.frame() %>% rename( eqtl = pheno1)
  ) %>%
  cbind(
    bspry_pqtl %>% as.data.frame() %>% rename( pqtl = pheno1)
  ) -> bspry_qtl_scans

tfcp2l1_qtl <- peaks.esc.overlap.wEffs %>%
  filter( lod.esc_prot >7.5, mgi_symbol =="Tfcp2l1", match =="shared")

# Get allele effects
peaks.esc.overlap.wEffs %>%
  filter( peak_id == tfcp2l1_qtl$peak_id ,
          peak_chr == tfcp2l1_qtl$peak_chr) %>%
  select( mgi_symbol,
          paste0(LETTERS[1:8], ".esc_atac"),
          paste0(LETTERS[1:8], ".esc_rna"),
          paste0(LETTERS[1:8], ".esc_prot")
  ) -> tfcp2l1_effects

# Get QTL scans
tfcp2l1_caqtl <- scan1(genoprobs = probs.esc_atac,
                     pheno = counts.normZ[,tfcp2l1_qtl$peak_id],
                     kinship = kinship_loco.esc_atac,
                     addcovar = covar.esc_atac)

tfcp2l1_eqtl <- scan1(genoprobs = probs.esc_rna,
                    pheno = exprZ.esc_rna[,tfcp2l1_qtl$ensembl_gene_id],
                    kinship = kinship_loco.esc_rna,
                    addcovar = covar.esc_rna)

tfcp2l1_pqtl <- scan1(genoprobs = probs.esc_prot,
                    pheno = exprZ.esc_prot[,tfcp2l1_qtl$protein_id],
                    kinship = kinship_loco.esc_prot,
                    addcovar = covar.esc_prot)
tfcp2l1_caqtl %>%
  as.data.frame( ) %>%
  rename( caqtl = pheno1) %>%
  mutate( marker = dimnames(tfcp2l1_caqtl)[[1]]) %>%
  left_join(map_dat2) %>%
  cbind(
    tfcp2l1_eqtl %>% as.data.frame() %>% rename( eqtl = pheno1)
  ) %>%
  cbind(
    tfcp2l1_pqtl %>% as.data.frame() %>% rename( pqtl = pheno1)
  ) -> tfcp2l1_qtl_scans


# merge data
Figure_4C_data_scans <- bspry_qtl_scans %>%
  filter( chr == 4) %>%
  mutate( Protein = "BSPRY") %>%
  cbind(
    all.prots2 %>%
      filter( mgi_symbol =="Bspry") %>%
      select( gene_start, gene_end, midpoint)
  ) %>%
  rbind(
    tfcp2l1_qtl_scans %>%
      filter( chr == 1) %>%
      mutate( Protein = "TFCP2L1") %>%
      cbind(
            all.prots2 %>%
              filter( mgi_symbol =="Tfcp2l1") %>%
              select( gene_start, gene_end, midpoint)
      )
    ) %>%
  select(
    Protein,
    marker,
    chr,
    pos_cM,
    pos_bp,
    caqtl,
    eqtl,
    pqtl,
    gene_start,
    gene_end,
    midpoint
  )

Figure_4C_data_effs <- bspry_effects %>%
  mutate( Protein = "BSPRY") %>%
  rbind(
    tfcp2l1_effects %>%
      mutate( Protein ="TFCP2L1")
  ) %>%
  select( -mgi_symbol) %>%
  pivot_longer( cols = c( paste0(LETTERS[1:8], ".esc_atac"),
          paste0(LETTERS[1:8], ".esc_rna"),
          paste0(LETTERS[1:8], ".esc_prot")),
          names_to = c("effect"),
          values_to = "value") %>%
  separate(effect, sep ="[.]", into = c("Strain","QTL")) %>%
  mutate( Strain = case_when( Strain == "A" ~ "A/J",
                              Strain == "B" ~ "B6",
                              Strain == "C" ~ "129",
                              Strain == "D" ~ "NOD",
                              Strain == "E" ~ "NZO",
                              Strain == "F" ~ "CAST",
                              Strain == "G" ~ "PWK",
                              Strain == "H" ~ "WSB")) %>%
  mutate( QTL = case_when(
    QTL == "esc_atac"~"caQTL",
    QTL == "esc_rna"~"eQTL",
    QTL == "esc_prot"~"pQTL" )
  )

# qtl colors
qtl.colors <- c( rna = "#228833",
                 prot = "#4477AA",
                 atac = "#EE6677",
                 shared = "#AA3377")

# Allele effects plot
Figure_4C_data_effs %>%
  filter( Protein =="BSPRY") %>%
  ggplot()+
  aes( x = Strain,
       y = value,
       col = QTL,
       group = QTL)+
  geom_point(size = 4, show.legend = FALSE)+
  geom_line(show.legend = T, size = 1.2)+
  theme_pubclean(base_size = 18)+
  scale_color_manual( values = c(qtl.colors[["atac"]],qtl.colors[["rna"]],qtl.colors[["prot"]]),
                      labels = c("caQTL","eQTL","pQTL"))+
  ylab("Haplotype effects")+
  xlab("")+
  ylim(-2,1.1)+
  geom_hline( yintercept = 0)+
  theme(axis.line.x = element_blank(),
        axis.title = element_text(size = 18))+
  labs(col ="QTL type")+
  coord_flip( clip ="off")+
  theme(legend.position = "none") -> bspry_haplotype_plot


# LOD plots
Figure_4C_data_scans %>%
  filter( Protein =="BSPRY") %>%
  pivot_longer( cols = c("caqtl","eqtl","pqtl"), names_to = "qtl_type", values_to = "lod") %>%
  mutate( qtl_type = factor( qtl_type, levels = c("caqtl","eqtl","pqtl"))) %>%
  ggplot()+
    aes(
      x= pos_bp,
      y = lod,
      col = qtl_type
      )+
    geom_line( size = 1.5)+
    theme_pubclean( base_size = 18)+
  scale_color_manual( values = c(qtl.colors[["atac"]],qtl.colors[["rna"]],qtl.colors[["prot"]]),
                      labels = c("caQTL","eQTL","pQTL"))+
  xlab(paste0("Chr ",bspry_qtl$peak_chr," location (bp)"))+
  ylab( "LOD score")+
  labs(col = "QTL type")+
  geom_segment( mapping = aes(x = gene_start, xend = gene_end), y = 0, yend = 1, col = "black", size = 2) +
  geom_text( mapping = aes( x=midpoint), y = 2, label ="Bspry", size =6, col = "black", fontface = "italic") -> bspry_lod_plot

# TFCP2L1 plot
# Allele effects plot
Figure_4C_data_effs %>%
  filter( Protein =="TFCP2L1") %>%
  ggplot()+
  aes( x = Strain,
       y = value,
       col = QTL,
       group = QTL)+
  geom_point(size = 4, show.legend = FALSE)+
  geom_line(show.legend = T, size = 1.2)+
  theme_pubclean(base_size = 18)+
  scale_color_manual( values = c(qtl.colors[["atac"]],qtl.colors[["rna"]],qtl.colors[["prot"]]),
                      labels = c("caQTL","eQTL","pQTL"))+
  ylab("Haplotype effects")+
  xlab("")+
  ylim(-2,1.1)+
  geom_hline( yintercept = 0)+
  theme(axis.line.x = element_blank(),
        axis.title = element_text(size = 18))+
  labs(col ="QTL type")+
  coord_flip( clip ="off")+
  theme(legend.position = "none")  -> tfcp2l1_haplotype_plot


# LOD plots
Figure_4C_data_scans %>%
  filter( Protein =="TFCP2L1") %>%
  pivot_longer( cols = c("caqtl","eqtl","pqtl"), names_to = "qtl_type", values_to = "lod") %>%
  mutate( qtl_type = factor( qtl_type, levels = c("caqtl","eqtl","pqtl"))) %>%
  ggplot()+
    aes(
      x= pos_bp,
      y = lod,
      col = qtl_type
      )+
    geom_line( size = 1.5)+
    theme_pubclean( base_size = 18)+
  scale_color_manual( values = c(qtl.colors[["atac"]],qtl.colors[["rna"]],qtl.colors[["prot"]]),
                      labels = c("caQTL","eQTL","pQTL"))+
  xlab(paste0("Chr ",tfcp2l1_qtl$peak_chr," location (bp)"))+
  ylab( "LOD score")+
  labs(col = "QTL type")+
geom_segment( mapping = aes(x = gene_start, xend = gene_end), y = 0, yend = 1, col = "black", size = 2) +
  geom_text( mapping = aes( x= midpoint), y = 2, label ="Tfcp2l1", size =6, col = "black", fontface = "italic") +
  ylim(0,15)-> tfcp2l1_lod_plot

bspry_plot <- ggarrange( bspry_lod_plot, bspry_haplotype_plot,
                         common.legend = TRUE,
                         widths = c(0.7, 0.4))

tfcp2l1_plot <- ggarrange( tfcp2l1_lod_plot, tfcp2l1_haplotype_plot,
                           common.legend = TRUE,
                           widths = c(0.7, 0.4) )

figure_4C <- ggarrange( bspry_plot, tfcp2l1_plot, nrow = 2)


figure_4C

Figure 4C: Examples of significant pQTL where the influence of genetic variation is seen at all three molecular layers are shown. On the left, LOD scores obtained from genome scans using chromatin accessibility (caQTL), transcript (eQTL) and protein abundance (pQTL) of the associated gene is plotted with the protein coding gene location annotated on the x-axis. On the right, haplotype effects obtained from the caQTL, eQTL and pQTL peaks are shown.

QTL scan and effects data used in plotting Figure 4C can be downloaded below.

 list(Figure_4C_data_scans, Figure_4C_data_effs) %>%
  downloadthis::download_this(
    output_name = "Figure4C data",
    output_extension = ".xlsx",
    button_label = "Download Figure 4C data as xlsx",
    button_type = "primary",
    has_icon = TRUE,
    icon = "fa fa-save"
  )

Download Figure 4C data as xlsx

Figure 4D: pQTL hotspots

# Get pQTL hotspots
# prep the objects
map_dat2$chromF <- factor(map_dat2$chrom, levels = c(as.character(1:19), "X"))
chrom_markers <- select(map_dat2, chromF, n) %>%
  rename(chrom = chromF) %>%
  group_by(chrom) %>%
  summarize(start = min(n), end = max(n)) %>%
  GenomicRanges::GRanges()
windows <- unlist(GenomicRanges::slidingWindows(chrom_markers, width = 50, step = 10))
markers_bynum <- select(map_dat2, chrom, n) %>%
  dplyr::rename(start = n) %>%
  mutate(end = start) %>%
  GenomicRanges::GRanges()

distant_esc_prot <- filter(peaks.esc_prot_annotated, lod > 7.5, !is.na(local) & !(local)) %>%
  select(peak_chr, interp_bp_peak) %>%
  dplyr::rename(chrom = peak_chr, end = interp_bp_peak) %>%
  mutate(start = end) %>%
  GenomicRanges::GRanges()

distant_esc_prot_sugg <- filter(peaks.esc_prot_annotated, lod > 6, !is.na(local) & !(local)) %>%
  select(peak_chr, interp_bp_peak) %>%
  dplyr::rename(chrom = peak_chr, end = interp_bp_peak) %>%
  mutate(start = end) %>%
  GenomicRanges::GRanges()

markers <- select(map_dat2, chrom, pos_bp) %>%
  dplyr::rename(start = pos_bp) %>%
  mutate(end = start) %>%
  GenomicRanges::GRanges() # length 69,005

x <- GenomicRanges::nearest(distant_esc_prot_sugg, markers)
y <- GenomicRanges::nearest(distant_esc_prot, markers)

windows$distant_esc_prot_sugg <- GenomicRanges::countOverlaps(windows, markers_bynum[x])
windows$distant_esc_prot <- GenomicRanges::countOverlaps(windows, markers_bynum[y])
window_counts <- tibble(
  chrom = as.character(GenomicRanges::seqnames(windows)),
  start = GenomicRanges::start(windows), end = GenomicRanges::end(windows),
  distant_esc_prot = windows$distant_esc_prot,
  distant_esc_prot_sugg = windows$distant_esc_prot_sugg,
)
mm <- match(window_counts$start, map_dat2$n)
m2 <- match(window_counts$end, map_dat2$n)
window_counts$pos_cM_start <- map_dat2$pos_cM[mm]
window_counts$pos_bp_start <- map_dat2$pos_bp[mm]
window_counts$pos_cM_end <- map_dat2$pos_cM[m2]
window_counts$pos_bp_end <- map_dat2$pos_bp[m2]
window_counts <- window_counts %>%
  mutate(midpoint = (pos_cM_end + pos_cM_start) / 2, 4)

x <- select(window_counts, chrom, starts_with("pos_bp"), starts_with("distant")) %>%
  filter( distant_esc_prot > quantile(distant_esc_prot,0.995) |
          distant_esc_prot_sugg > quantile(distant_esc_prot_sugg,0.995) )

bands.esc.prot <- x %>%
  rename(start = pos_bp_start, end = pos_bp_end) %>%
  GenomicRanges::GRanges() %>%
  GenomicRanges::reduce()
# reduce collapses overlapping windows into one big window.
bands.esc.prot$distant_esc_prot <- GenomicRanges::countOverlaps(bands.esc.prot, distant_esc_prot)
bands.esc.prot$distant_esc_prot_sugg <- GenomicRanges::countOverlaps(bands.esc.prot, distant_esc_prot_sugg)

# Plot hotspots
bands.esc.prot %>%
  as_tibble() %>%
  select( chrom = seqnames, start, end, distant_esc_prot) %>%
  mutate( hotspot_midpoint = (start+end)/2 ) %>%
  # adding all the marker locations to match axes
  rbind( (map_dat2 %>%
              select( chrom, start = pos_bp, end =pos_bp) %>%
              mutate( distant_esc_prot = 0,
                      hotspot_midpoint = start))) %>%
  mutate( chrom = factor(chrom, levels = c(seq(1:19),"X")) ) -> pqtl_counts

# adding all the markers with 0 hotspot values to match the axes
pqtl_counts$midpoint_offset <- pqtl_counts$hotspot_midpoint + chrom_lens_offset[pqtl_counts$chrom]

Figure4D_data <- pqtl_counts %>%
  select(
    Chr = chrom,
    `Offsetted hotspot midpoint (bp)` = midpoint_offset,
    `# of distant pQTL` = distant_esc_prot
  )

# graphical prep for chromosome locations
chroms <- c(as.character(1:19), "X")
chrom_lens <- c( 195431559, 182107670, 160017104, 156496071, 151833620, 149721874, 145434693, 129399468, 124582650, 130685419, 122078650, 120120622 ,120387272, 124867725, 104015452, 98180002, 94984432, 90672596, 61417310 , 171028300)
names(chrom_lens) <- chroms
chrom_lens_offset <- cumsum(chrom_lens) - chrom_lens
chrom_lens_midpt <- chrom_lens_offset + chrom_lens / 2

Figure4D_data %>%
  ggplot()+
  aes( x = `Offsetted hotspot midpoint (bp)`,
       y = `# of distant pQTL`)+
  geom_bar( stat = "identity", width = 100, col =qtl.colors[["prot"]], fill= qtl.colors[["prot"]] )+
  theme_pubclean(base_size = 16)+
  scale_x_continuous( name = "Chr",
                      breaks = chrom_lens_midpt,
                      labels = names(chrom_lens), expand = expansion(mult = .02) )+
  xlab("")+
  ylab("# of distant pQTL")+
  theme( axis.text = element_text(size = 10)) -> trans_band_plot

trans_band_plot

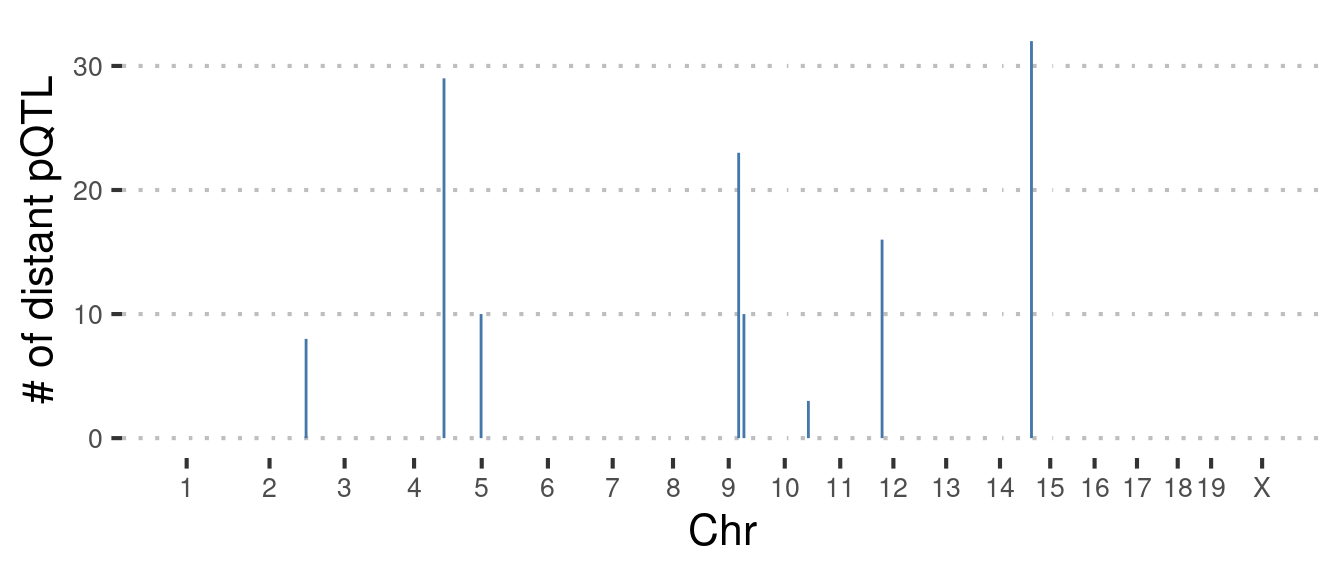

Figure 4D: Histogram depicting the number of total distant pQTL forming hotspots across the genome.

Data used in plotting Figure 4D can be downloaded below.

list(Figure4D_data) %>%
  downloadthis::download_this(
    output_name = "Figure4D data",
    output_extension = ".xlsx",
    button_label = "Download Figure 4D data as xlsx",
    button_type = "primary",
    has_icon = TRUE,
    icon = "fa fa-save"
  )

Download Figure 4D data as xlsx

Table S6: List of pQTL hotspots and their target proteins.

The details of each pQTL hotspot such as chromosomal location, start, end, width and the number of significant (LOD > 7.5) and suggestive (LOD > 6) pQTL found are listed. For each, the suggestive distant pQTL found within the hotspot is listed with gene annotations and QTL details as well.

# QTL Chromosome    QTL Start (bp)  QTL End (bp)    QTL Width (bp)  Number of Significant Distant pQTL (LOD > 7.5)  Number of Suggestive Distant pQTL (LOD > 6)
bands.esc.prot %>%
  as_tibble() %>%
  filter(distant_esc_prot > 20) %>%
  select(
    `QTL Hotspot Chromosome` = seqnames,
    `QTL Hotspot Start (bp)` = start,
    `QTL Hotspot End (bp)` = end,
    `QTL Hotspot Width (bp)` = width,
    `Number of Signfiicant Distant pQTl (LOD > 7.5)` = distant_esc_prot,
    `Number of Suggestive Distant pQTl (LOD > 6)` = distant_esc_prot_sugg
  ) -> tables6_sheet1


bands.esc.prot %>%
  as_tibble() %>%
  filter(distant_esc_prot > 20) -> bands_esc_prot_signif

peaks.esc_prot_annotated %>%
  filter( peak_chr == 4) %>%
  filter(
    local == FALSE &
      interp_bp_peak >= bands_esc_prot_signif$start[1] &
      interp_bp_peak <= bands_esc_prot_signif$end[1]  &
      lod > 6
  ) %>%
  select(
    `Protein ID` = protein_id,
    `Gene ID` = ensembl_gene_id,
    `MGI Symbol` = mgi_symbol,
    `Gene Chr` = gene_chr,
    `Gene Start (bp)` = gene_start,
    `Gene End (bp)` = gene_end,
    `QTL Chr` = peak_chr,
    `QTL Position (cM)` = peak_cM,
    `QTL Position (bp)` = interp_bp_peak,
    `LOD Score` = lod
  ) %>%
    mutate_if( is.numeric, round ,2)-> tables6_sheet2

peaks.esc_prot_annotated %>%
  filter( peak_chr == 9) %>%
  filter(
    local == FALSE &
      interp_bp_peak >= bands_esc_prot_signif$start[2] &
      interp_bp_peak <= bands_esc_prot_signif$end[2]  &
      lod > 6
  ) %>%
  select(
    `Protein ID` = protein_id,
    `Gene ID` = ensembl_gene_id,
    `MGI Symbol` = mgi_symbol,
    `Gene Chr` = gene_chr,
    `Gene Start (bp)` = gene_start,
    `Gene End (bp)` = gene_end,
    `QTL Chr` = peak_chr,
    `QTL Position (cM)` = peak_cM,
    `QTL Position (bp)` = interp_bp_peak,
    `LOD Score` = lod
  ) %>%
    mutate_if( is.numeric, round ,2) -> tables6_sheet3


peaks.esc_prot_annotated %>%
  filter( peak_chr == 15) %>%
  filter(
    local == FALSE &
      interp_bp_peak >= bands_esc_prot_signif$start[3] &
      interp_bp_peak <= bands_esc_prot_signif$end[3]  &
      lod > 6
  ) %>%
  select(
    `Protein ID` = protein_id,
    `Gene ID` = ensembl_gene_id,
    `MGI Symbol` = mgi_symbol,
    `Gene Chr` = gene_chr,
    `Gene Start (bp)` = gene_start,
    `Gene End (bp)` = gene_end,
    `QTL Chr` = peak_chr,
    `QTL Position (cM)` = peak_cM,
    `QTL Position (bp)` = interp_bp_peak,
    `LOD Score` = lod
  ) %>%
    mutate_if( is.numeric, round ,2) -> tables6_sheet4

Download Table_S6.xlsx

Figure S4A-B: Details of the pQTL hotspot on chromosome 15

chr15.pQTL <- peaks.esc_prot.wEffs %>%
  filter(peak_chr == 15) %>%
  filter(lod.esc_prot > 6 & !local.esc_prot & !is.na(protein_id) &
    interp_bp_peak.esc_prot > filter(bands_esc_prot_signif)$start[3] &
    interp_bp_peak.esc_prot < filter(bands_esc_prot_signif)$end[3])

chr15.all.genes.weff.mat <- chr15.pQTL %>%
  filter(!is.na(A.esc_prot)) %>%
  select(c(paste0(LETTERS[1:8], ".esc_prot"), "mgi_symbol")) %>%
  distinct() %>%
  column_to_rownames("mgi_symbol") %>%
  as.matrix() %>%
  t()

annotation_row <- data.frame(strain = c("AJ", "B6", "129", "NOD", "NZO", "CAST", "PWK", "WSB"))
rownames(annotation_row) <- rownames(chr15.all.genes.weff.mat)

annot.colors <- list(
  strain = c(
   c(AJ = "#F0E442", B6 = "#555555", `129` = "#E69F00", NOD = "#0072B2",
   NZO = "#56B4E9", CAST = "#009E73", PWK = "#D55E00", WSB = "#CC79A7")
  ),
  match = c(ESC_pQTL = qtl.colors[["prot"]], shared = qtl.colors[["shared"]])
)


(pheatmap(chr15.all.genes.weff.mat,
  cluster_rows = T, show_rownames = FALSE,
  cluster_cols = T, show_colnames = FALSE,
  clustering_method = "complete",
  scale = "none",
  clustering_distance_cols = "correlation",
  clustering_distance_rows = "correlation",
  main = "Founder allele effects of suggestive pQTL within chr 15 hotspot",
  #annotation_col = annotation,
  annotation_row = annotation_row,
  annotation_colors = annot.colors, cutree_rows = 2,
  cellwidth = 3
))

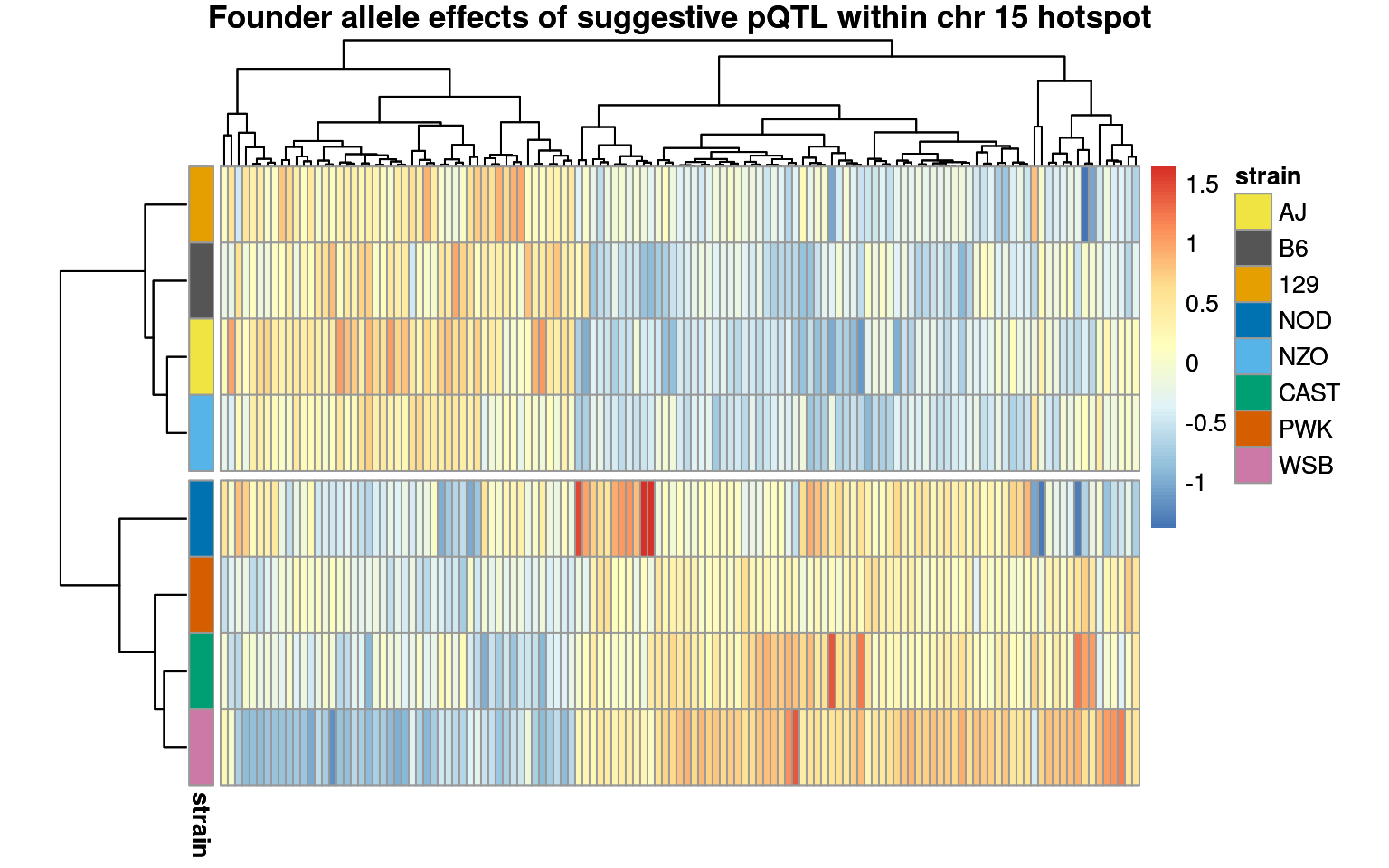

Figure S4A: The allelic split observed in previously described eQTL hotspot on chromosome 15 is also observed for the pQTL hotspot. Heatmap showing haplotype effects at suggestive distant pQTL peaks (LOD > 6) within the chromosome 15 hotspot.

pqtl_rna_meds %>%
  inner_join(select(chr15.pQTL, "target.id" = protein_id, "qtl.chr" = peak_chr)) -> chr15.rna.meds

pqtl_prot_meds %>%
  inner_join(select(chr15.pQTL, "target.id" = protein_id, "qtl.chr" = peak_chr)) -> chr15.prot.meds

chr15.rna.meds %>%
  mutate( type = "rna") %>%
  rbind( chr15.prot.meds %>%  mutate( type = "protein")) %>%
  mutate(mediation.lod = ifelse(target.symbol == mediator.symbol, NA, mediation.lod)) %>%
  mutate(lod_drop = target.lod - mediation.lod) %>%
  group_by(target.symbol, type) %>%
  arrange(mediation.lod) %>%
  mutate(rank = rep(seq(1:n()))) -> chr15.meds.ranked

chr15.meds.ranked.sum <- chr15.meds.ranked %>%
  filter(rank == 1) %>% #filter(mediator.symbol =="Lifr") %>%  select(lod_drop)
  group_by(mediator.symbol, type) %>%
  summarize(n = length(target.symbol), min_drop = min(lod_drop, na.rm = T), max_drop = max(lod_drop, na.rm = T), med_drop = median(lod_drop, na.rm = T)) %>%
  arrange(desc(n))

# looking at the top!
results <- chr15.meds.ranked %>%
  ungroup() %>%
  select(mediator.symbol, target.symbol, mediation.lod, target.lod) %>%
  mutate(mediator.symbol = str_c(mediator.symbol, "_rna")) %>%
  mutate(lod_drop = target.lod - mediation.lod) %>%
  select(-mediation.lod, -target.lod) %>%
  filter((mediator.symbol %in% str_c(chr15.meds.ranked.sum$mediator.symbol[1:5], "_rna"))) %>%
  mutate(lod_drop = ifelse(lod_drop < 0, 0, lod_drop), lod_drop = ifelse(lod_drop > 6, 6, lod_drop)) %>%
  rename(target = target.symbol, LOD_diff = lod_drop)

ggplot(results, aes(y = mediator.symbol, x = target)) +
  geom_point(aes(color = LOD_diff, size = exp(LOD_diff) / 30), alpha = 0.6) +
  scale_color_gradientn(
    colors = c("white", "firebrick3", "navy"),
    values = scales::rescale(c(0, 3, 6)),
    name = "LOD\ndifference", limits = c(0, 6)
  ) +
  scale_size(breaks = 0:6, labels = as.character(0:6), range = c(0, 8)) +
  guides(size = "none") +
  theme_pubclean(base_size = 18) +
  theme(
    axis.text.y = element_text(size = 14, hjust = 1),
    axis.ticks = element_blank(),
    axis.text.x = element_text(size = 0),
    axis.title = element_text(size = 14),
    legend.text = element_text(size = 14),
    legend.title = element_text(size = 16),
    panel.grid.major = element_blank(),
    panel.grid.minor = element_blank(),
    panel.background = element_blank()
  ) +
  xlab("Target pQTL")+
  ylab("Mediator") -> Figure_S4B

Figure_S4B

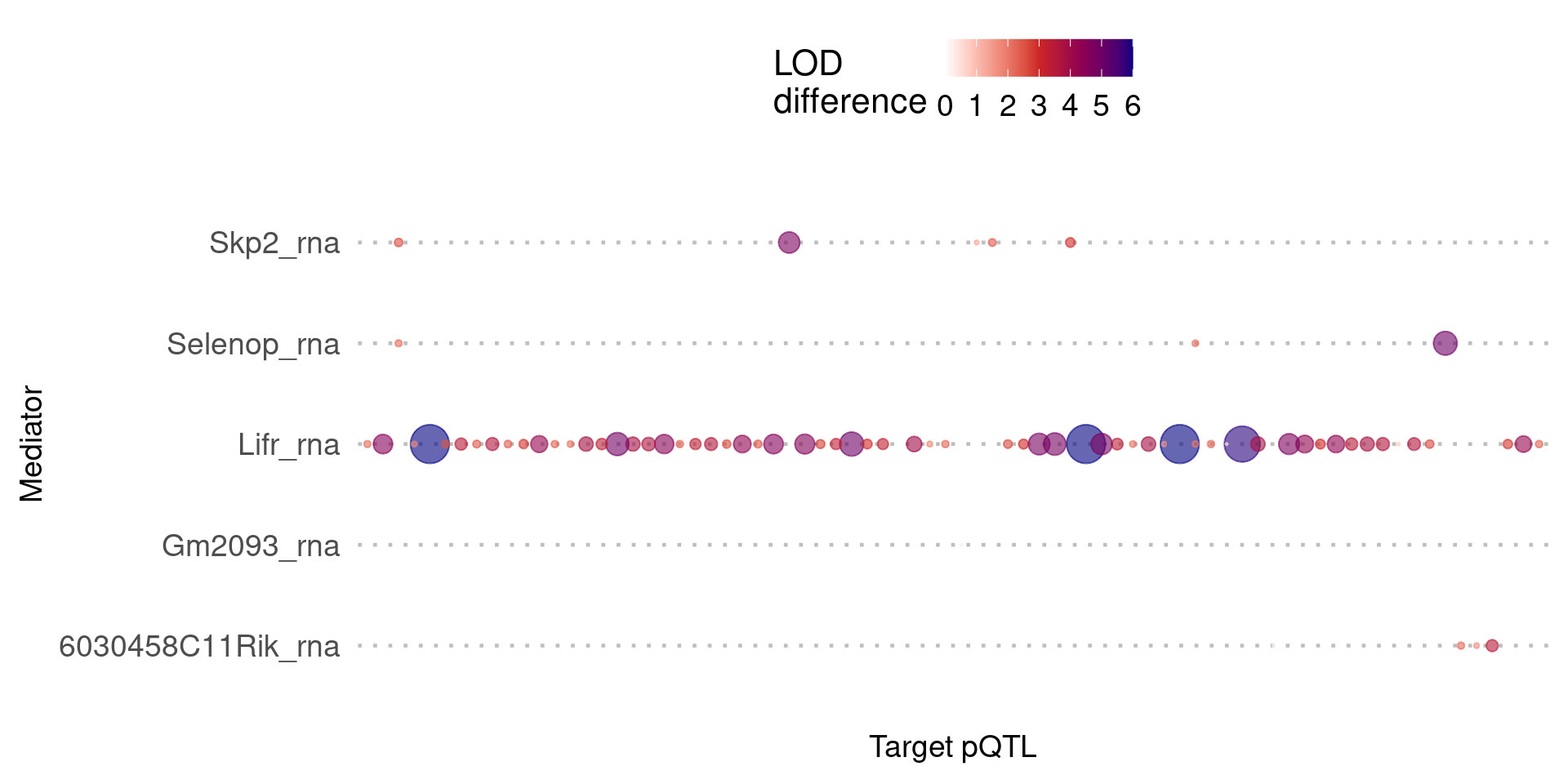

Figure S4B: Mediation analysis identifies Lifr transcript abundance as the best mediator for chromosome 15 pQTL hotspot. Decrease in LOD scores due to mediation is plotted for the top five mediators in the region for the suggestive distant pQTL. The points are colored and sized according to LOD difference. For 61/131 suggestive distant pQTL peaks in the region, Lifr transcript abundance leads to the largest drop in LOD when included as a covariate in the genetic mapping model.

Figure S4C: QTL mapping with GSVA scores

# QTL mapping with GSVA scores
# Commented out and the results are saved to an RData file because it takes a long time to run.
gsva_results %>%
  filter( Category %in% (signif_results_tukey %>% filter( term %in% c("sex","lifr_geno"),
                                                          p.adj.signif != "ns" ))$Category ) %>%
  select(Category, sampleid, Enrichment_Score) %>%
  pivot_wider( id_cols = sampleid , names_from = Category, values_from = Enrichment_Score) %>%
  column_to_rownames("sampleid") %>%
  as.matrix() -> gsva_results_signif_mat

# rankZ
gsva_results_signif_mat_rankZ <- apply(gsva_results_signif_mat, 2,rankZ )
#
# # qtl mapping
# gsva_qtl <- scan1( genoprobs = probs.esc_prot,
#                    pheno = gsva_results_signif_mat_rankZ,
#                    kinship = kinship_loco.esc_prot,
#                    addcovar = covar.esc_prot)
# save( gsva_qtl, file = here("_data","GSVA_qtl_scans.RData"))

load(here("../pQTL_website/_data/GSVA_qtl_scans.RData"))
gsva_qtl_peaks <- find_peaks( gsva_qtl, threshold = 7, gmap)
# add interp_peak_bp, before, after
gsva_qtl_peaks <- gsva_qtl_peaks %>%
  left_join( ., goannot_wdef %>% select(lodcolumn=GOID,TERM) %>% distinct()) %>%
  mutate( TERM = ifelse( is.na(TERM), lodcolumn, TERM)) %>%
  mutate(phenotype=lodcolumn) %>%
  mutate( peak_chr = chr,
          peak_cM = pos) %>%
  interp_bp(.) #add bp location for peaks

# Get the bounding markers for each QTL peak
# i.e. markers on the 69k grid that are up- and downstream of the peak
query <- gsva_qtl_peaks %>% dplyr::select(peak_chr, interp_bp_peak) %>%
    dplyr::rename(chrom=peak_chr, start=interp_bp_peak) %>% mutate(end=start) %>%
    GenomicRanges::GRanges()
subject <- select(map_dat2, chrom, pos_bp) %>% dplyr::rename(start=pos_bp) %>%
    mutate(end=start) %>% GenomicRanges::GRanges()   # length 69,005

gsva_qtl_peaks$before <- map_dat2$marker[follow(query, subject)]
gsva_qtl_peaks$after <- map_dat2$marker[precede(query, subject)]

# plot Protein ADP ribosylation
ribo_scan_plot <- gsva_qtl[,"GO:0006471",drop=FALSE] %>%
  as.data.frame() %>%
  rownames_to_column("marker") %>%
  left_join(map_dat2) %>%
  filter( chr == 15) %>%
  ggplot()+
    aes(
      x= pos_bp,
      y = `GO:0006471`,
      )+
  geom_line( size = 1.5, col = qtl.colors[["prot"]])+
  theme_pubclean( base_size = 18)+
  xlab(paste0("Chr 15 location (bp)"))+
  ylab( "LOD score")+
  ylim(0,8)

ribo_effs <- scan1blup( genoprobs = probs.esc_prot[,15],
                   pheno = gsva_results_signif_mat_rankZ[,"GO:0006471",drop=FALSE],
                   kinship = kinship_loco.esc_prot[[15]],
                   addcovar = covar.esc_prot)
ribo_qtl<- gsva_qtl_peaks %>%
  filter( phenotype =="GO:0006471", peak_chr == 15)
ribo_effs <- colMeans(ribo_effs[c(ribo_qtl$before,ribo_qtl$after), LETTERS[1:8]])

ribo_effs %>%
  as_tibble(rownames = "effect" ) %>%
  mutate( type = "pQTL") %>%
  mutate( effect = case_when( effect == "A" ~ "AJ",
                              effect == "B" ~ "B6",
                              effect == "C" ~ "129",
                              effect == "D" ~ "NOD",
                              effect == "E" ~ "NZO",
                              effect == "F" ~ "CAST",
                              effect == "G" ~ "PWK",
                              effect == "H" ~ "WSB")) %>%
  ggplot()+
  aes( x = effect,
       y = value,
       group = type)+
  geom_point(size = 4, show.legend = FALSE, col = qtl.colors[["prot"]])+
  geom_line(size = 1.2, show.legend = F, col = qtl.colors[["prot"]])+
  theme_pubclean(base_size = 18)+
  ylab("Haplotype effects")+
  xlab("")+
  ylim(-1,1)+
  geom_hline( yintercept = 0)+
  theme(axis.line.x = element_blank(),
        axis.title = element_text(size = 18))+
  coord_flip( clip ="off")+
  theme(legend.position = "none") -> ribo_hap_plot

ribo_qtl_plot <- ggarrange(ribo_scan_plot, ribo_hap_plot, nrow = 1, widths = c(0.7, 0.4))
ribo_qtl_plot

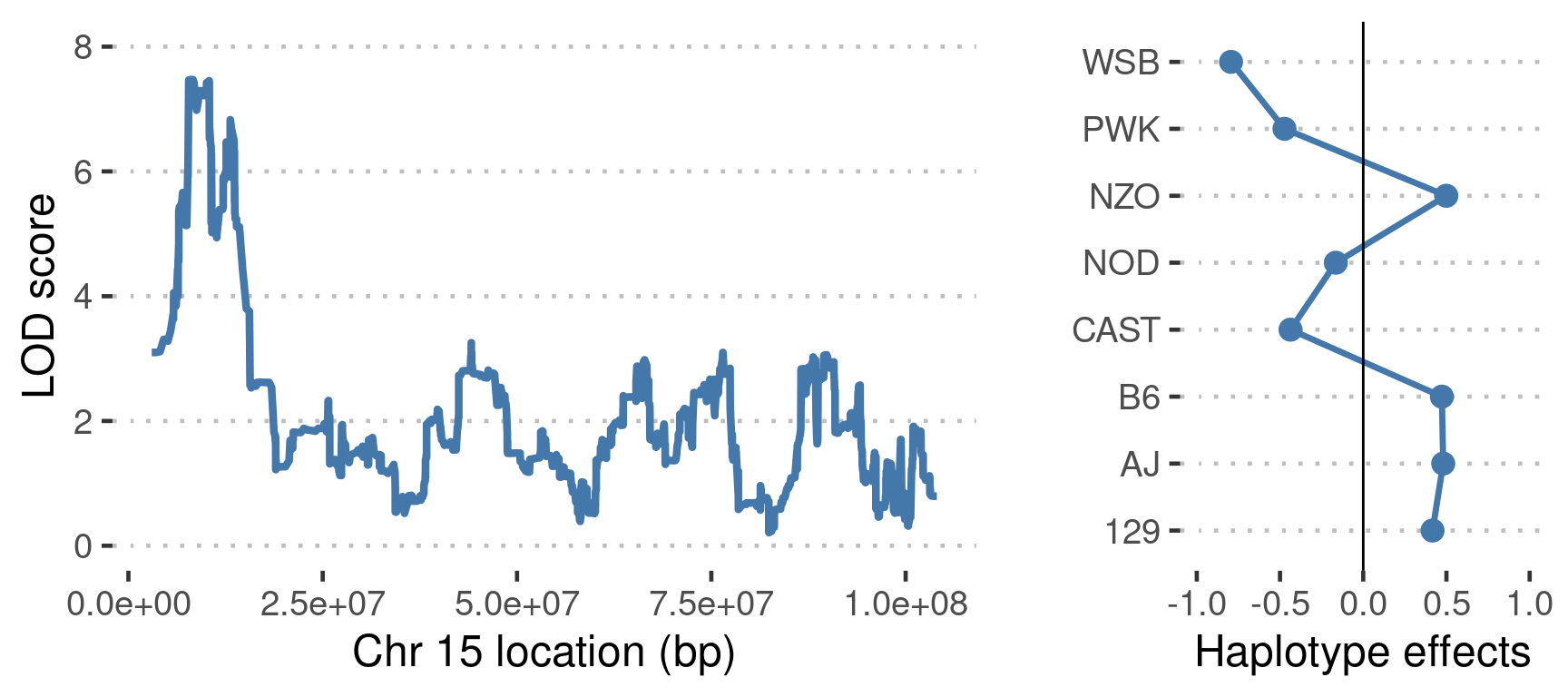

Figure S4C: Genetic mapping with GSVA scores of GO term Protein ADP-Ribosylation identifies a near significant QTL on chromosome 15 with similar haplotype effects to the chromosome 15 molecular QTL hotspot. On the left, genome scan showing LOD scores is plotted for chromosome 15. On the right, inferred haplotype effects at the QTL peak is plotted.

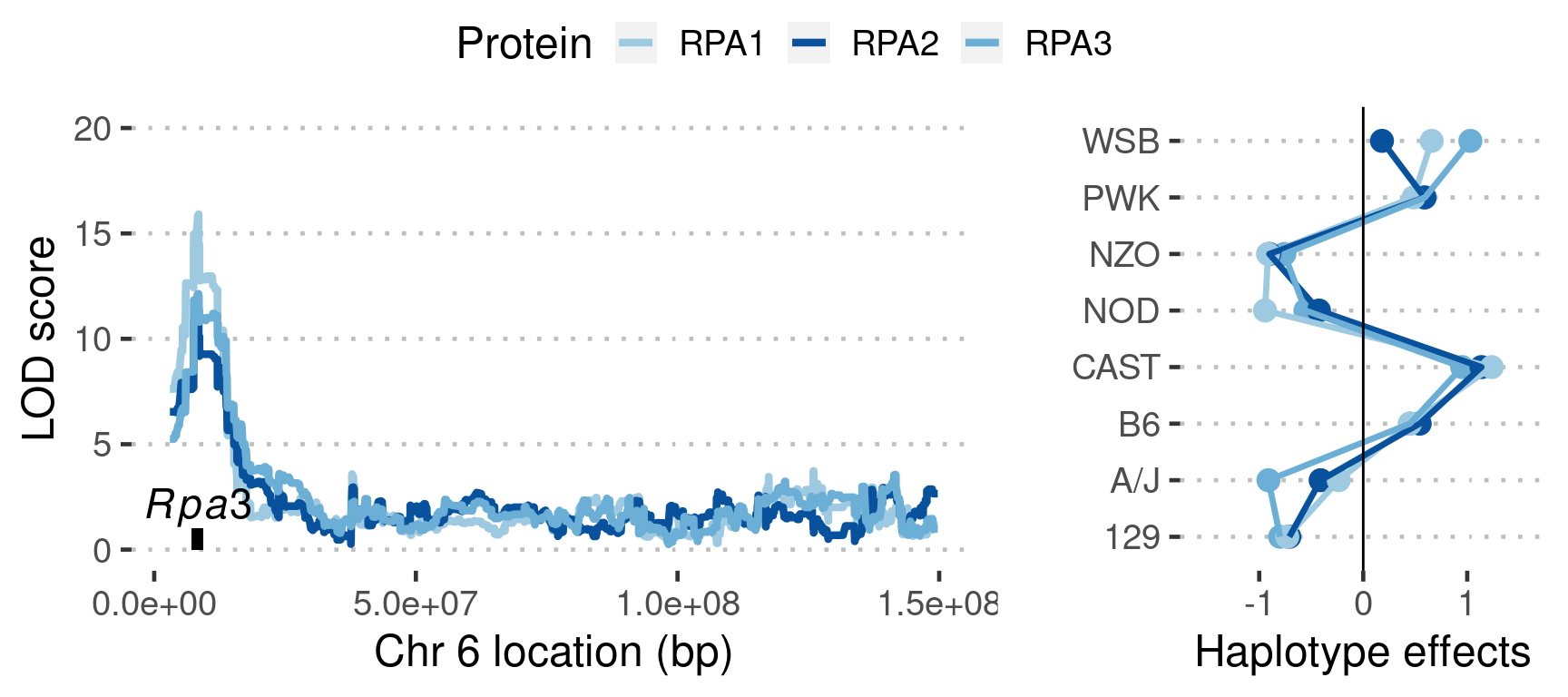

Figure 4E: Stoichometric buffering example

rpa_qtl <- peaks.esc.overlap.wEffs %>%
  filter( lod.esc_prot >7.5, mgi_symbol %in% c("Rpa1","Rpa2","Rpa3"), match%in% c("esc_prot","shared"))

# Effects plot
# "A/J", "B6", "129", "NOD", "NZO", "CAST", "PWK", "WSB"
rpa_effects <- peaks.esc.overlap.wEffs %>%
  filter( protein_id %in% rpa_qtl$protein_id ,
          peak_chr %in% rpa_qtl$peak_chr,
          match%in% c("esc_prot","shared")) %>%
  select( mgi_symbol,
          paste0(LETTERS[1:8], ".esc_prot")
  )

rpa_effects_mat <- rpa_effects %>%
  column_to_rownames("mgi_symbol") %>%
  t()

Figure_4E_data_effs <- rpa_effects %>%
  mutate( Protein= toupper(mgi_symbol)) %>%
  pivot_longer( cols = c(paste0(LETTERS[1:8], ".esc_prot")),
                names_to = c("effect"),
                values_to = "pQTL effect") %>%
  separate(effect, sep ="[.]", into = c("Strain","type")) %>%
  mutate( Strain = case_when( Strain == "A" ~ "A/J",
                              Strain == "B" ~ "B6",
                              Strain == "C" ~ "129",
                              Strain == "D" ~ "NOD",
                              Strain == "E" ~ "NZO",
                              Strain == "F" ~ "CAST",
                              Strain == "G" ~ "PWK",
                              Strain == "H" ~ "WSB"))

# LOD plots
rpa_pqtl <- scan1(genoprobs = probs.esc_prot,
                      pheno = exprZ.esc_prot[,rpa_qtl$protein_id],
                      kinship = kinship_loco.esc_prot,
                      addcovar = covar.esc_prot)


Figure_4E_data_scans <- rpa_pqtl %>%
  as_tibble(rownames = "marker") %>%
  left_join(map_dat2)  %>%
  filter( chr == rpa_qtl$peak_chr[1]) %>%
  pivot_longer( cols = c("ENSMUSP00000012627","ENSMUSP00000099621","ENSMUSP00000000767"), names_to = "protein_id", values_to = "lod") %>%
  left_join( select(all.prots, protein_id, mgi_symbol)) %>%
  mutate( Protein= toupper(mgi_symbol)) %>%
  mutate( Protein = factor( Protein, levels = c("RPA1","RPA2","RPA3"))) %>%
  select( Protein,
          `LOD score` = lod,
          `Marker Position (bp)` = pos_bp)

Figure_4E_data_effs %>%
  ggplot()+
  aes( x = Strain,
       y = `pQTL effect`,
       group= Protein,
       col = Protein)+
  geom_point(size = 4, show.legend = F)+
  geom_line(show.legend = T, size =1.2)+
  scale_color_manual( values = c( RColorBrewer::brewer.pal(6, "Blues")[3],
                                  RColorBrewer::brewer.pal(6, "Blues")[6],
                                  RColorBrewer::brewer.pal(6, "Blues")[4]))+
  theme_pubclean(base_size = 18)+
  ylab("Haplotype effects")+
  xlab("")+
  ylim(-1.6,1.6)+
  geom_hline( yintercept = 0)+
  theme(axis.line.x = element_blank(),
        axis.title = element_text(size = 18))+
  labs(shape = "Protein")+
   coord_flip( clip ="off")+
  theme(legend.position = "none") -> rpa_haplotype_plot


Figure_4E_data_scans %>%
  ggplot()+
    aes(
      x= `Marker Position (bp)`,
      y =  `LOD score`,
      col = Protein,
      )+
    geom_line( size = 1.5)+
    theme_pubclean( base_size = 18)+
  scale_color_manual( values = c( RColorBrewer::brewer.pal(6, "Blues")[3],
                                  RColorBrewer::brewer.pal(6, "Blues")[6],
                                  RColorBrewer::brewer.pal(6, "Blues")[4]))+
  xlab(paste0("Chr 6 location (bp)"))+
  ylab( "LOD score")+
  labs(col = "Protein")+
  geom_segment( x = 8255936, xend =  8259173, y = 0, yend = 1, col = "black", size = 2) +
  annotate( "text", x= 8257554, y = 2, label ="italic(Rpa3)", parse = TRUE, size =6) +
  ylim(0,20) -> rpa_lod_plot


Figure_4E <- ggarrange( rpa_lod_plot, rpa_haplotype_plot, common.legend = TRUE, widths = c(0.7, 0.4) )

Figure_4E

Figure 4E: An example of physical interaction propagating the effects of genetic variation is plotted. On the left, genome scan showing LOD scores across the genome for proteins RPA1, RPA2 and RPA3 is shown with the location of Rpa3 gene annotated on the x- axis. On the right, the inferred founder allele effects at the pQTL peak for all three genes are shown.

QTL scans and the effects used in plotting Figure 4E can be downloded below.

list(Figure_4E_data_scans, Figure_4E_data_effs) %>%
    downloadthis::download_this(
    output_name = "Figure4E data",
    output_extension = ".xlsx",
    button_label = "Download Figure 4E data as xlsx",
    button_type = "primary",
    has_icon = TRUE,
    icon = "fa fa-save"
  )

Download Figure 4E data as xlsx

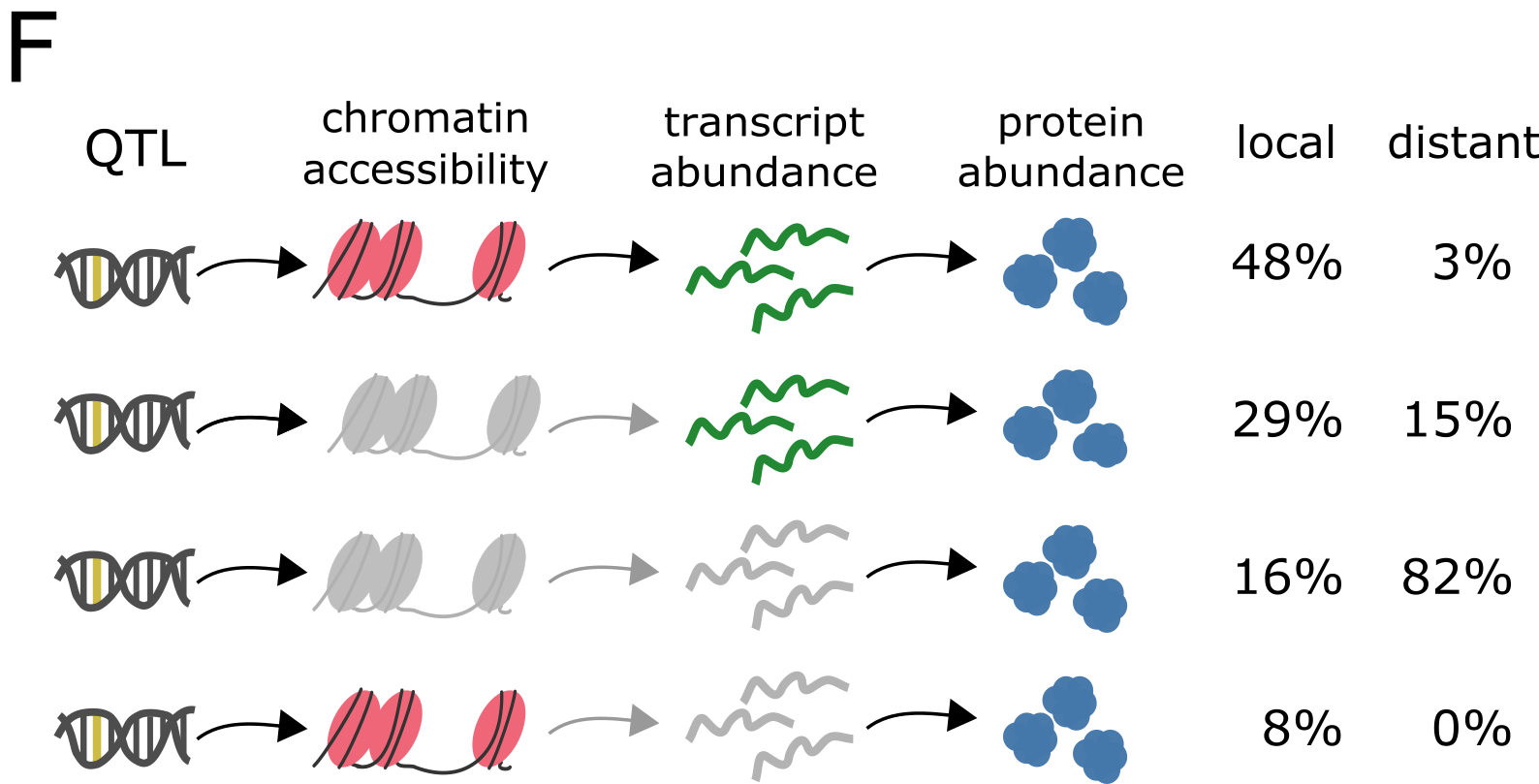

Figure 4F: Overview of significant pQTL overlap with caQTL and eQTL

knitr::include_graphics(here("Figure4F.png"))

Figure 4F: Graphical overview of the different groups of pQTL where the genetic variation (QTL) influences one or more molecular layers. Molecular layers lacking any impact (i.e., no QTL above LOD >5 with matching haplotype effects) are depicted in gray.

ids <- threeway.shared.samples$sampleid
names(ids) <- threeway.shared.samples$top_muga
threeway.shared.probs <- merged.probs[ind = threeway.shared.samples$top_muga]
threeway.shared.probs <- replace_ids(threeway.shared.probs, ids)
threeway.shared.kinship <- calc_kinship(threeway.shared.probs, type = "loco")
threeway.shared.covar <- merged.covar[threeway.shared.samples$top_muga, , drop = FALSE]
rownames(threeway.shared.covar ) <- threeway.shared.samples$sampleid

# # adding shared data matrices with new_symbol in the column names
shared.atac.data <- (counts.normZ[threeway.shared.samples$ATAC, threeway.shared.genes$peak_id])
colnames(shared.atac.data) <- threeway.shared.genes$new_symbol
rownames(shared.atac.data) <- threeway.shared.samples$sampleid

shared.rna.data <- (exprZ.esc_rna[threeway.shared.samples$sampleid, threeway.shared.genes$ensembl_gene_id])
colnames(shared.rna.data) <- threeway.shared.genes$new_symbol

shared.prot.data <- (exprZ.esc_prot[threeway.shared.samples$sampleid, threeway.shared.genes$protein_id])
colnames(shared.prot.data) <- threeway.shared.genes$new_symbol

# get the peaks only for shared genes
peaks.esc.overlap2 %>%
 filter( protein_id %in% threeway.shared.genes$protein_id) -> peaks.threeway.shared.genes


# total significant pQTL for threeway shared genes
peaks.esc_prot_annotated %>%
  filter( protein_id %in% threeway.shared.genes$protein_id, lod >7.5) -> significant_pQTL # 1589

# annotating pQTL
significant_pQTL %>%
  select( lod.esc_prot = lod,
          peak_chr,
          protein_id,
          local) %>%
  inner_join( .,
              (peaks.threeway.shared.genes %>%
                 select( lod.esc_prot,
                         peak_chr,
                         protein_id,
                         match)
                     )
  ) %>%
  distinct() %>%
  group_by( lod.esc_prot,peak_chr,protein_id) %>%
  mutate( match_all = paste0(match, collapse = ", ")) %>%
  select(-match) %>%
  ungroup %>%
  distinct() %>%
  mutate( match = case_when(
    match_all == "esc_prot" ~"unique pQTL",
    match_all == "shared_eQTL_pQTL" ~"shared e/pQTL",
    match_all == "shared_caQTL_pQTL" ~"shared ca/pQTL",
    match_all %in% c("shared_eQTL_pQTL, shared",
                     "shared, shared_eQTL_pQTL",
                     "shared_eQTL_pQTL, shared, shared_caQTL_eQTL",
                     "shared_caQTL_eQTL, shared, shared_eQTL_pQTL",
                     "shared_eQTL_pQTL, shared_caQTL_eQTL, shared",
                     "shared, shared_caQTL_eQTL, shared_eQTL_pQTL",
                     "shared, shared_eQTL_pQTL, shared_caQTL_eQTL",
                     "shared_caQTL_eQTL, shared_eQTL_pQTL",
                     "shared_eQTL_pQTL, shared_caQTL_eQTL",
                     "shared, shared_caQTL_eQTL",
                     "shared_caQTL_eQTL, shared",
                     "shared"
                     )~"shared ca/e/pQTL"
  )) -> significant_pQTL_annot

# I am adding caQTL/eQTL details, including allele effects to the significant pQTL.
significant_pQTL_annot %>%
  rename( local.esc_prot = local) %>%
  left_join(
    peaks.esc.overlap.wEffs %>%
      select(
        ensembl_gene_id, protein_id, peak_id,
        peak_chr, gene_chr,
        lod.esc_atac, lod.esc_rna, lod.esc_prot,
        local.esc_atac, local.esc_rna, local.esc_prot,
        interp_bp_peak.esc_atac, interp_bp_peak.esc_rna, interp_bp_peak.esc_prot,
        paste0(LETTERS[1:8],".esc_atac"),
        paste0(LETTERS[1:8],".esc_rna"),
        paste0(LETTERS[1:8],".esc_prot"),
        before.esc_atac, before.esc_rna, before.esc_prot,
        after.esc_atac, after.esc_rna, after.esc_prot,
        cumsum_bp.esc_atac, cumsum_bp.esc_rna, cumsum_bp.esc_prot,
        cumsum_bp_peak.esc_atac, cumsum_bp_peak.esc_rna, cumsum_bp_peak.esc_prot
        )
    ) %>%
    mutate(qtl_id = paste0("qtl_", 1:n()),
         eff_stat = case_when( is.na(A.esc_rna) ~ "missing eQTL",
                               is.na(A.esc_prot) ~ "missing pQTL",
                               is.na(A.esc_atac) ~ "missing caQTL",
                               !is.na(A.esc_rna) & !is.na(A.esc_prot) & !is.na(A.esc_atac) ~ "all in") ) -> significant_pQTL_annot2

# allele effect correlations for genes with all three measurements
# let's fill in missing effects first for all.
effs.df1 <- list()
effs.df2 <- list()
effs.df3 <- list()
# pdf()
subset_probs <- function(this_probs, this_chrom, this_markers) {
  att <- attributes(this_probs)
  att$names <- this_chrom
  att$is_x_chr <- setNames(FALSE, this_chrom)
  assertthat::assert_that(all(this_markers %in% dimnames(this_probs[[this_chrom]])[[3]]))
  newprobs <- list(this_probs[[this_chrom]][, , this_markers, drop = FALSE])
  names(newprobs) <- this_chrom
  attributes(newprobs) <- att
  newprobs
}

# fill in missing effects using the protein markers for caQTL + eQTL
# so we are getting the allele effects at the pQTL peak for the missing values.
for (i in 1:length((significant_pQTL_annot2$qtl_id))) {
  #print(i)
  this_chrom <- significant_pQTL_annot2$peak_chr[i]
  gene.id <- significant_pQTL_annot2$ensembl_gene_id[i]
  peak_id <- significant_pQTL_annot2$peak_id[i]
  protein_id <- significant_pQTL_annot2$protein_id[i]

  if(significant_pQTL_annot2$eff_stat[i] =="all in"){
    next
  }
  if( significant_pQTL_annot2$eff_stat[i] =="missing eQTL"){

    this_markers <- c(significant_pQTL_annot2$before.esc_prot[i],significant_pQTL_annot2$after.esc_prot[i])
    probs_2marker <- subset_probs(threeway.shared.probs, this_chrom, this_markers)
    id <- threeway.shared.genes[ threeway.shared.genes$ensembl_gene_id == gene.id,]$new_symbol[1]
    effs_rna <- scan1blup(
      genoprobs = probs_2marker,
      pheno = (shared.rna.data[, id, drop = FALSE]),
      kinship = threeway.shared.kinship[[this_chrom]],
      addcovar = threeway.shared.covar
    )
    significant_pQTL_annot2[i, paste0(LETTERS[1:8], ".esc_rna") ] <- as.list(colMeans(effs_rna)[LETTERS[1:8]])

  }

  if( significant_pQTL_annot2$eff_stat[i] =="missing caQTL" & !is.na(peak_id)){

    this_markers <- c(significant_pQTL_annot2$before.esc_prot[i],significant_pQTL_annot2$after.esc_prot[i])
    probs_2marker <- subset_probs(threeway.shared.probs, this_chrom, this_markers)
    id <- threeway.shared.genes[ threeway.shared.genes$peak_id == peak_id,]$new_symbol[1]
    effs_atac <- scan1blup(
      genoprobs = probs_2marker,
      pheno = (shared.atac.data[, id, drop = FALSE]),
      kinship = threeway.shared.kinship[[this_chrom]],
      addcovar = threeway.shared.covar
    )
    significant_pQTL_annot2[i, paste0(LETTERS[1:8], ".esc_atac") ] <- as.list(colMeans(effs_atac)[LETTERS[1:8]])
  }

  # these are all significant pQTL so they all have effects!
  # if( significant_pQTL_annot2$eff_stat[i] =="missing pQTL"){
  #
  #   this_markers <- c(significant_pQTL_annot2$before.esc_rna[i],significant_pQTL_annot2$after.esc_rna[i])
  #   probs_2marker <- subset_probs(threeway.shared.probs, this_chrom, this_markers)
  #   effs_prot <- scan1blup(
  #     genoprobs = probs_2marker,
  #     pheno = (shared.prot.data[, id, drop = FALSE]),
  #     kinship = threeway.shared.kinship[[this_chrom]], addcovar = threeway.shared.covar
  #   )
  #   significant_pQTL_annot2[i, paste0(LETTERS[1:8], ".esc_prot") ] <- as.list(colMeans(effs_prot)[LETTERS[1:8]])
  # }


}

# now let's get correlations.
significant_pQTL_annot2 %>%
  mutate(local = ifelse((local.esc_rna == TRUE | local.esc_prot == T | local.esc_atac == T), "local", "distant")) %>%
  #mutate(qtl_id = paste0("qtl_", 1:n())) %>%
  select(c(paste0(LETTERS[1:8], ".esc_rna"), "qtl_id")) %>%
  column_to_rownames("qtl_id") %>%
  t() -> shared.rna.effs

significant_pQTL_annot2 %>%
  mutate(local = ifelse((local.esc_rna == TRUE | local.esc_prot == T | local.esc_atac == T), "local", "distant")) %>%
  #mutate(qtl_id = paste0("qtl_", 1:n())) %>%
  select(c(paste0(LETTERS[1:8], ".esc_prot"), "qtl_id")) %>%
  column_to_rownames("qtl_id") %>%
  t() -> shared.prot.effs

significant_pQTL_annot2 %>%
  mutate(local = ifelse((local.esc_atac == TRUE | local.esc_rna == T | local.esc_atac == T), "local", "distant")) %>%
  #mutate(qtl_id = paste0("qtl_", 1:n())) %>%
  select(c(paste0(LETTERS[1:8], ".esc_atac"), "qtl_id")) %>%
  column_to_rownames("qtl_id") %>%
  t() -> shared.atac.effs

significant_pQTL_corrs_rna_atac <- cbind(shared.rna.effs, shared.atac.effs)
colnames(significant_pQTL_corrs_rna_atac) <- c(
  paste0(colnames(shared.rna.effs), "_rna"),
  paste0(colnames(shared.atac.effs), "_atac")
)
cor_rna_atac <- rcorr(significant_pQTL_corrs_rna_atac, type = c("pearson"))
significant_pQTL_corrs_rna_atac_df <- data.frame(
  cor = diag(cor_rna_atac$r[
    endsWith(rownames(cor_rna_atac$r), "_atac"),
    endsWith(colnames(cor_rna_atac$r), "_rna")
  ]),
  row = rownames(cor_rna_atac$r)[endsWith(rownames(cor_rna_atac$r), "_atac")],
  column = colnames(cor_rna_atac$r)[endsWith(colnames(cor_rna_atac$r), "_rna")],
  p_val = diag(cor_rna_atac$P[
    endsWith(rownames(cor_rna_atac$P), "_atac"),
    endsWith(colnames(cor_rna_atac$P), "_rna")
  ]),
  n = diag(cor_rna_atac$n[
    endsWith(rownames(cor_rna_atac$n), "_atac"),
    endsWith(colnames(cor_rna_atac$n), "_rna")
  ])
) %>%
  mutate(qtl_id = gsub("_atac", "", row)) %>%
  #mutate(p_adj = p.adjust(p_val, "BH")) %>%
  arrange(desc(abs(cor))) %>%
  left_join(., (significant_pQTL_annot2 %>%
    mutate(local = ifelse((local.esc_rna == TRUE | local.esc_atac == T), "local", "distant")) )
    )


significant_pQTL_corrs_rna_prot <- cbind(shared.rna.effs, shared.prot.effs)
colnames(significant_pQTL_corrs_rna_prot) <- c(
  paste0(colnames(shared.rna.effs), "_rna"),
  paste0(colnames(shared.prot.effs), "_prot")
)
cor_rna_prot <- rcorr(significant_pQTL_corrs_rna_prot, type = c("pearson"))
significant_pQTL_corrs_rna_prot_df <- data.frame(
  cor = diag(cor_rna_prot$r[
    endsWith(rownames(cor_rna_prot$r), "_prot"),
    endsWith(colnames(cor_rna_prot$r), "_rna")
  ]),
  row = rownames(cor_rna_prot$r)[endsWith(rownames(cor_rna_prot$r), "_prot")],
  column = colnames(cor_rna_prot$r)[endsWith(colnames(cor_rna_prot$r), "_rna")],
  p_val = diag(cor_rna_prot$P[
    endsWith(rownames(cor_rna_prot$P), "_prot"),
    endsWith(colnames(cor_rna_prot$P), "_rna")
  ]),
  n = diag(cor_rna_prot$n[
    endsWith(rownames(cor_rna_prot$n), "_prot"),
    endsWith(colnames(cor_rna_prot$n), "_rna")
  ])
) %>%
  mutate(qtl_id = gsub("_prot", "", row)) %>%
  mutate(p_adj = p.adjust(p_val, method = "BH")) %>%
  arrange(desc(abs(cor))) %>%
  left_join(., (significant_pQTL_annot2 %>%
    mutate(local = ifelse((local.esc_rna == TRUE | local.esc_prot == T), "local", "distant")) )
    )


significant_pQTL_corrs_prot_atac <- cbind(shared.prot.effs, shared.atac.effs)
colnames(significant_pQTL_corrs_prot_atac) <- c(
  paste0(colnames(shared.prot.effs), "_prot"),
  paste0(colnames(shared.atac.effs), "_atac")
)
cor_prot_atac <- rcorr(significant_pQTL_corrs_prot_atac, type = c("pearson"))
significant_pQTL_corrs_prot_atac_df <- data.frame(
  cor = diag(cor_prot_atac$r[
    endsWith(rownames(cor_prot_atac$r), "_atac"),
    endsWith(colnames(cor_prot_atac$r), "_prot")
  ]),
  row = rownames(cor_prot_atac$r)[endsWith(rownames(cor_prot_atac$r), "_atac")],
  column = colnames(cor_prot_atac$r)[endsWith(colnames(cor_prot_atac$r), "_prot")],
  p_val = diag(cor_prot_atac$P[
    endsWith(rownames(cor_prot_atac$P), "_atac"),
    endsWith(colnames(cor_prot_atac$P), "_prot")
  ]),
  n = diag(cor_prot_atac$n[
    endsWith(rownames(cor_prot_atac$n), "_atac"),
    endsWith(colnames(cor_prot_atac$n), "_prot")
  ])
) %>%
  mutate(qtl_id = gsub("_atac", "", row)) %>%
  mutate(p_adj = p.adjust(p_val, method = "BH")) %>%
  arrange(desc(abs(cor))) %>%
  left_join(., (significant_pQTL_annot2 %>%
    mutate(local = ifelse((local.esc_prot == TRUE | local.esc_atac == T), "local", "distant")) )
    )


# let's add correlations back to the table:

significant_pQTL_annot2 %>%
  full_join(
     significant_pQTL_corrs_prot_atac_df %>%
      select( cor_atac_prot = cor, qtl_id)
    ) %>%
  full_join(
     significant_pQTL_corrs_rna_atac_df %>%
      select( cor_atac_rna = cor, qtl_id)
  ) %>%
  full_join(
    significant_pQTL_corrs_rna_prot_df %>%
      select( cor_rna_prot = cor, qtl_id)
  ) ->  significant_pQTL_wcorr


# Let's save each category to individual objects and filter acc to thresholds
# all the unique pQTL with correlations.
significant_pQTL_wcorr %>%
  filter( match %in% c("unique pQTL")) -> uniq.pQTL.wcorr

# shared eQTL/pQTL with correlations
# note that atac-seq peak annotations will lead to repetitions, need to drop atac columns to get distinct eQTL/pQTL
significant_pQTL_wcorr %>%
  filter( match %in% c("shared e/pQTL")) -> eQTL.pQTL.wcorr

# shared caQTL/pQTL with correlations
significant_pQTL_wcorr %>%
  filter( match %in% c("shared ca/pQTL")) %>%
  group_by(protein_id, peak_chr, lod.esc_prot, match) %>%
  slice_max( abs(cor_atac_prot))  %>% # take the atac peaks with highest correlation, gets rid off NAs
  ungroup()  -> caQTL.pQTL.wcorr

# shared ca/e/pQTL
# keeping the atac-seq peak with the highest correlation only
significant_pQTL_wcorr %>%
  filter( match %in% c("shared ca/e/pQTL") )   %>%
  group_by(protein_id, peak_chr, lod.esc_prot, match) %>%
  slice_max( abs(cor_atac_prot))  %>% # take the atac peaks with highest correlation, gets rid off NAs
  ungroup()  -> threeway.shared.pQTL.wcorr


# now I will update the pQTL classifications
# get unique pQTL
uniq.pQTL.wcorr %>%
  select( protein_id, lod.esc_prot, peak_chr) %>%
  distinct() %>%
  rbind(
    eQTL.pQTL.wcorr %>%
      filter( abs(cor_rna_prot) < 0.5) %>%
      select( protein_id, peak_chr, lod.esc_prot) %>%
      distinct()
  ) %>%
  rbind(
    caQTL.pQTL.wcorr %>%
      filter( abs(cor_atac_prot) < 0.5) %>%
      select( protein_id, peak_chr, lod.esc_prot) %>%
      distinct()
  ) %>%
  rbind(
    threeway.shared.pQTL.wcorr %>%
      filter( abs(cor_atac_prot) < 0.5 & abs(cor_rna_prot) <0.5 ) %>%
      select( protein_id, peak_chr, lod.esc_prot) %>%
      distinct()
  ) %>%
  mutate( match = "unique pQTL") -> unique_pQTL
# get shared eQTL/pQTL
eQTL.pQTL.wcorr %>%
  filter( abs(cor_rna_prot) >= 0.5) %>% # filter ones that moved to unique pQTL
  select( protein_id, lod.esc_prot, peak_chr) %>%
  distinct() %>%
  rbind(
    threeway.shared.pQTL.wcorr %>% # move ones with abs(cor)<0.5 from shared ca/e/pQTL
      filter( abs(cor_atac_prot) < 0.5 & abs(cor_rna_prot) >= 0.5 ) %>%
      select( protein_id, peak_chr, lod.esc_prot) %>%
      distinct()
  ) %>%
  mutate( match = "shared e/pQTL") -> shared_eQTL_pQTL
# get shared caQTL/pQTL
caQTL.pQTL.wcorr %>%
  filter( abs(cor_atac_prot) >=0.5) %>% # filter ones that moved to unique pQTL
  select( protein_id, lod.esc_prot, peak_chr) %>%
  distinct() %>%
  rbind(
    threeway.shared.pQTL.wcorr %>%  # move ones with abs(cor)<0.5 from shared ca/e/pQTL
      filter( abs(cor_atac_prot) >= 0.5 & abs(cor_rna_prot) < 0.5 ) %>%
      select( protein_id, peak_chr, lod.esc_prot) %>%
      distinct()
  ) %>%
  mutate( match = "shared ca/pQTL") -> shared_caQTL_pQTL
# get shared ca/e/pQTL
threeway.shared.pQTL.wcorr %>%
  filter( abs(cor_rna_prot) >= 0.5 & abs(cor_atac_prot) >= 0.5) %>%
  select(protein_id, peak_chr, lod.esc_prot) %>%
  distinct() %>%
  mutate( match = "shared ca/e/pQTL") -> shared_pQTL

significant_pQTL_annot_updated <- rbind(
  shared_pQTL,
  unique_pQTL,
  shared_caQTL_pQTL,
  shared_eQTL_pQTL
) %>%
  left_join( select(significant_pQTL_annot2, -match, -match_all, -eff_stat)
  ) %>%
    full_join(
     significant_pQTL_corrs_prot_atac_df %>%
      select( cor_atac_prot = cor, qtl_id)
    ) %>%
  full_join(
     significant_pQTL_corrs_rna_atac_df %>%
      select( cor_atac_rna = cor, qtl_id)
  ) %>%
  full_join(
    significant_pQTL_corrs_rna_prot_df %>%
      select( cor_rna_prot = cor, qtl_id)
  ) %>%
  left_join(
    peaks.threeway.shared.genes %>% select( protein_id,mgi_symbol, cumsum_bp_gene) %>% distinct()
  )

rbind(
  shared_pQTL,
  unique_pQTL,
  shared_caQTL_pQTL,
  shared_eQTL_pQTL
) %>%
  left_join( significant_pQTL_annot %>%
               select(protein_id, peak_chr, lod.esc_prot, local )
             ) %>%
  group_by(match) %>% # summarize(n = n_distinct(protein_id))
  count(match, local) %>%
  ungroup() %>%
  mutate( local = ifelse( local, "local", "distant")) %>%
  pivot_wider(
    id_cols = match,names_from = "local", values_from = "n"
  ) %>%
  mutate( local = round(100*local/(sum(local))),
          distant = round(100*distant/(sum(distant)))
  ) %>%
  select( `Overlap`=match ,
          `local (%)` = local,
          `distant (%)`= distant) %>%
  mutate(
    order = case_when( Overlap =="shared ca/e/pQTL"~1,
                       Overlap =="shared e/pQTL"~2,
                       Overlap == "unique pQTL"~3,
                       Overlap =="shared ca/pQTL"~4)
  ) %>%
  arrange(order) %>%
  select(-order) %>%
  DT::datatable(.,
                extensions = 'Buttons',
                rownames = FALSE,
                #filter="top",
                options = list(dom = 't',
                               buttons = c('copy'),
                               pageLength = 5,
                               scrollX= TRUE
                               ))

Data used to generate Figure 4F.

---

A work by Selcan Aydin

selcan.aydin@jax.org
